Metal Sheet Laser Cutting Machine 1000w Fiber Laser 3000*1500mm
Cutting Area
Introduction of Laser Cutting Machine:
The laser cutting machine is to focus the laser emitted from the
laser into a high power density laser beam through the optical path
system. The laser beam is irradiated on the surface of the
workpiece, making the workpiece reach the melting point or boiling
point, while the high-pressure gas coaxial with the beam blows the
molten or vaporized metal away. With the movement of the relative
position of the beam and the workpiece, the material is finally
formed into a slit, so as to achieve the purpose of cutting.Laser
cutting machine use German imported IPG fiber lasers,it is widely
used in various industries such as advertising decoration,kitchen
ware,engineering machinery,steel and iron,automobile,metal plate
chassis,air-conditioner manufacturing,metal plate cutting,etc.
Main Features of Laser Cutting Machine:
Special wavelength (1070nm), with the unique ability to cut
high-reflective materials such as aluminum, copper, brass, etc.
The laser electro-optical conversion rate is about 25%, which is
much higher than CO2 (<10%), which greatly reduces the power
loss
Laser is transmitted through optical fiber, basically no
transmission loss
Modular design, "plug and play", compact size, easy installation,
no need for laser and beam transmission system maintenance
Long service life,the service life of the pump source> 100,000
hours
Technical Parameters of Laser Cutting Machine:
| 1 | Name | Laser cutting machine |
| 2 | Power | 1000W |
| 3 | Laser type | Fiber laser |
| 4 | Laser wavelength | 1070 nm |
| 5 | Cutting speed | ≤30m/min |
| 6 | Maximum load of worktable | 1600KG |
| 7 | Power supply rated parameters | 380V 50Hz |
| 8 | Equipment power | 9KW |
| 9 | Protection level | IP54 |
| 10 | Rated output power | 3000W |
| 11 | Positioning accuracy | ≤±0.02mm/m |
| 12 | Repositioning accuracy | ≤±0.02mm/m |
| 13 | Cutting range | 3000×1500mm |

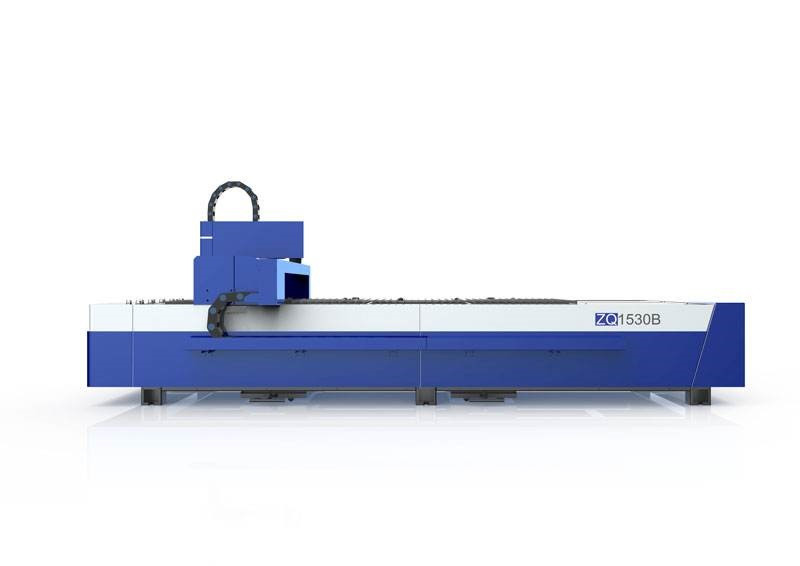

Product Pictures of Laser Cutting Machine:
Cutting Pictures of Laser Cutting Machine:
Company Pictures:
FAQ:
Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we
can provide online technical guidance or you send it back,and we
repair it.
Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose
one to pay for it.
Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for
you.
Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working
days.When ship it by sea,the shipping time is about 25 working days
Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking
solution provider, supplied CYCJET series handheld inkjet printer,
Portable Industrial inkjet printer, Desktop inkjet printer, laser
marking machine to different country in the world!
