High Speed Cutting Fiber Laser Cutting Machine For Sheet Metal
Introduction of Laser Cutting Machine for Sheet Metal:
In the sheet metal processing industry, the most commonly used raw
materials are stainless steel, aluminum, carbon steel, and rare
metals. Fiber laser cutting machines are used for stainless steel
metal products, which not only greatly saves labor costs, but also
achieves high laser cutting speed.
Twice as much as traditional wire cutting. Laser cutting is fast,
efficient, and easy to complete mass production.
Technical Parameters of Laser Cutting Machine:
| Product name |
Laser cutting machine
|
| Power supply |
3000W
|
| Laser type |
Fiber laser
|
| Laser wavelength |
1070 nm
|
Cutting speed |
≤30m/min
|
Maximum load of worktable |
2400KG
|
Power supply rated parameters |
380V 50Hz
|
Equipment power |
3KW
|
Protection level |
IP54
|
Output power |
6000W
|
Positioning accuracy |
≤±0.02mm/m
|
Repositioning accuracy of worktable |
≤±0.02mm/m
|
Cutting range |
3000×1500mm
|

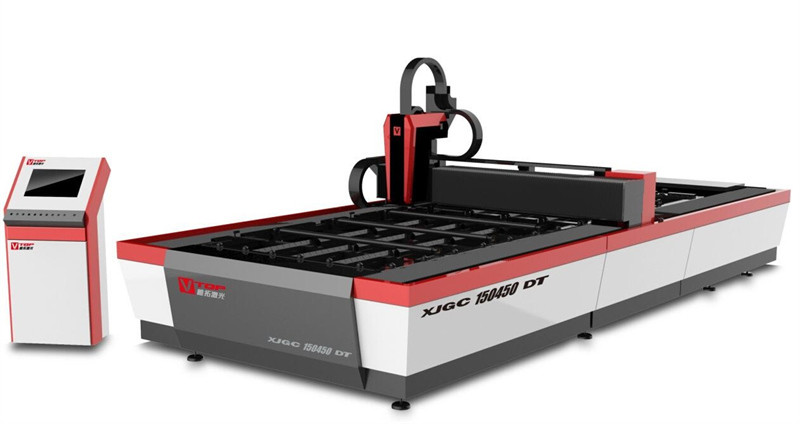

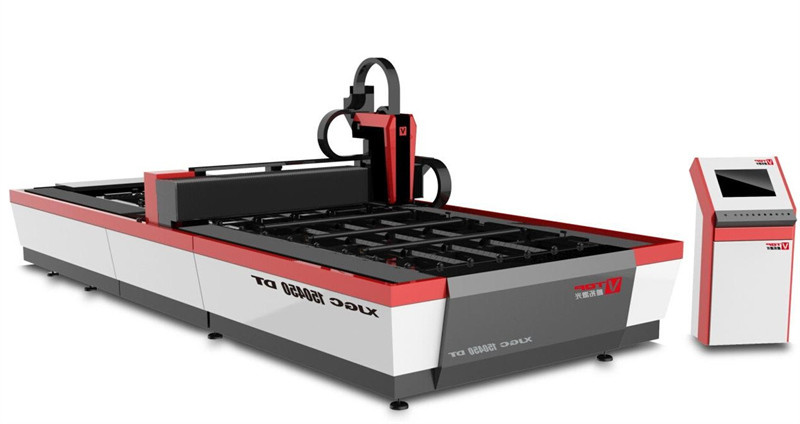

Product Pictures of Laser Cutting Machine:
Cutting Pictures of Laser Cutting Machine:
Laser Cutting Machine Main Features:
- Special wavelength (1070nm), with the unique ability to cut
high-reflective materials such as aluminum, copper, brass, etc.
- The laser electro-optical conversion rate is about 25%, which is
much higher than CO2 (<10%), which greatly reduces the power
loss
- Laser is transmitted through optical fiber, basically no
transmission loss
- Modular design, "plug and play", compact size, easy installation,
no need for laser and beam transmission system maintenance
- Long service life, the service life of the pump source> 100,000 hours
FAQ:
Q1: How long is the warranty time?
The warranty is one year,if there is problems with the machine, we
can provide online technical guidance or you send it back, and we
repair it.
Q2: What payment method can I use?
We can accept T/T, L/C, D/P, D/A, PayPal, or Western Union, you can
choose one to pay for it.
Q3: Can I pay cash on delivery?
No,you need to pay it first, then I will arrange the shipment for
you.
Q4: How long can I receive the goods?
When we ship it by express, the shipping time is about 12 working
days. When ship it by sea,the shipping time is about 25 working
days
Q5: Why should I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking
solution provider, supplied CYCJET series handheld inkjet printer,
Portable Industrial inkjet printer, Desktop inkjet printer, laser
marking machine to different country in the world!
