Cycjet 1000w Laser Cutting Machine For Steel Aluminum Sheet Metal
Fiber Laser Cutter
Application of Laser Cutting Machine:
The laser cutting machine mainly for metal plates,equipped with high power fiber
laser,precise linear guide rail and high precision rack and pinion,
high performance numerical control system, High precision, high
efficiency and high cost performance. It is safety and
environmental due to its covering of dust proof.
Laser Cutting Machine Main Features:
- Special wavelength (1070nm), with the unique ability to cut
high-reflective materials such as aluminum, copper, brass, etc.
- The laser electro-optical conversion rate is about 25%, which is
much higher than CO2 (<10%), which greatly reduces the power
loss
- Laser is transmitted through optical fiber, basically no
transmission loss
- Modular design, "plug and play", compact size, easy installation,
no need for laser and beam transmission system maintenance
- Long service life,the service life of the pump source> 100,000 hours
Technical Parameters of Laser Cutting Machine:
| 1 | Product name | Laser cutting machine |
| 2 | Power | 1000W |
| 3 | Laser type | Fiber laser device |
| 4 | Laser wavelength | 1070 nm |
| 5 | Cutting speed | ≤30m/min |
| 6 | Maximum load of worktable | 1600KG |
| 7 | Power supply rated parameters | 380V 50Hz |
| 8 | Equipment power | 3KW |
| 9 | Protection level | IP54 |
| 10 | Output power | 3000W |
| 11 | Axial positioning accuracy of worktable | ≤±0.02mm/m |
| 12 | Repeated positioning accuracy of worktable | ≤±0.02mm/m |
| 13 | Effective cutting range | 3000×1500mm |

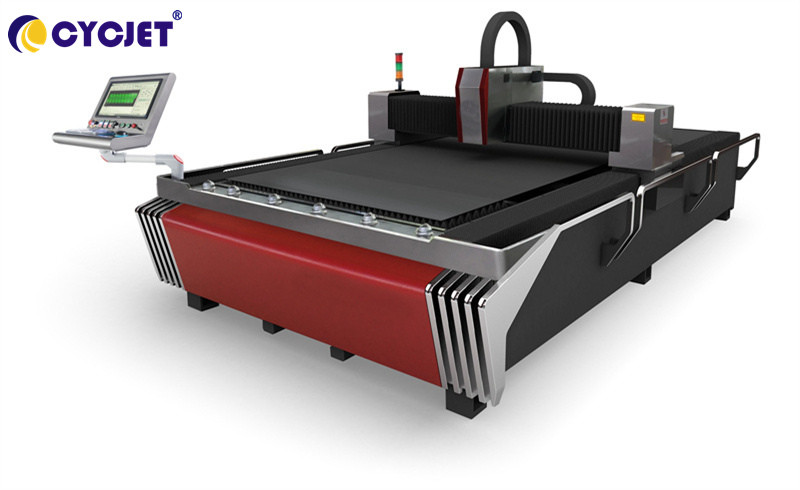

Product Pictures:
Cutting Pictures of Laser Cutting Machine:
Company Pictures:
FAQ:
Q1 :How long is the warranty time?
The warranty is one year,if there is problems with the machine, we
can provide online technical guidance or you send it back,and we
repair it.
Q2 :What payment method can I use?
We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for
it.
Q3 :Can I pay cash on delivery?
No,you need to pay it first ,then I will arrange the shipment for
you.
Q4 :How long can I receive the goods?
When we ship it by express,the shipping time is about 12 working
days.When ship it by sea,the shipping time is about 25 working days
Q5:Why should you I from you not from other suppliers?
We are a professional handheld inkjet printer and portable marking
solution provider, supplied CYCJET series handheld inkjet printer,
Portable Industrial inkjet printer, Desktop inkjet printer, laser
marking machine to different country in the world!
