    Industrial Portable Laser Welding Machine 1000w Fiber Laser Welder

    Ask Lasest Price
    Brand Name : CYCJET
    Model Number : CLW1000
    Certification : CE, SGS, FDA
    Price : Negotiated
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 500 sets per month
    Delivery Time : 10-12 working days
    • Product Details
    • Company Profile

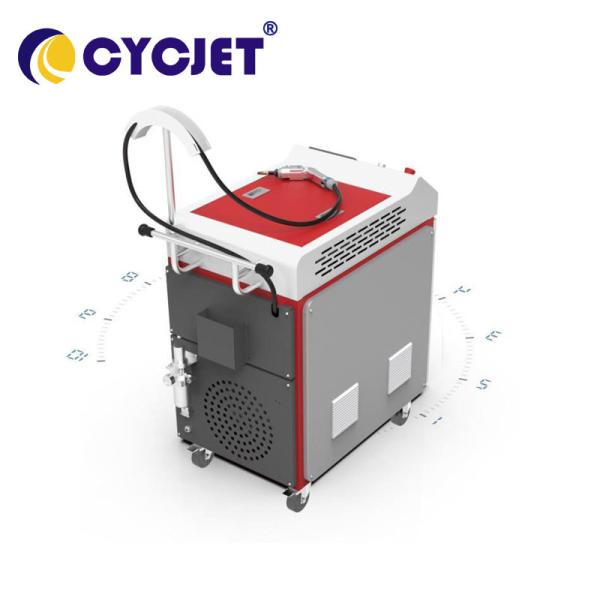

    Industrial Portable Laser Welding Machine 1000w Fiber Laser Welder

    Industrial Portable Laser Welding Machine 1000W Fiber Laser Welder


    Description:


    Industrial Portable 1000W Laser Welding Machine equipped with a high-speed electronic filter protection device to protect the operator's eyes from laser damage, relieve operator eye fatigue, and improve work efficiency. A high-definition CCD monitoring system can be installed in the laser welding machine. The laser welding machine using micro industrial computer, including all functions of ordinary computer, its stability and anti-interference ability are far superior to products in the same industry. Fast speed, large depth and small deformation. Laser welding machine can be welded at room temperature or under special conditions, and the welding equipment is simple. For example, when a laser passes through an electromagnetic field, the beam will not be deflected; light can weld in vacuum, air, and certain gas environments, and can weld through glass or materials that are transparent to the beam. Refractory materials such as titanium, quartz, etc can weld by the laser welding machine with good effect.


    Main Characters:


    1. The welding seam is narrow, the welding seam cooling speed is fast, the weld metal properties change little, and the welding seam strength is high.
    2. Compared with traditional welding, it is easier to use, no need professional welding experience is required.
    3. Tiny laser spot can be precisely positioned and easily automated.
    4. Suitable dissimilar metal welding.
    5. Excellent for spot welding, butt welding, overlap sealing welding.

    Technical Parameters:

    1Frame MaterialALUM & Steel.
    2Laser DeviceFiber Laser
    3Power≥1000W
    4Max. laser pulse energy15J
    5Pulse Width0.2-50ms
    6Fiber Output NoSingle
    7Working ModeContinuous/Pulse
    8Laser Wavelength1080nm
    9Welding Thickness Carbon Steel (C235)0.5-3.8mm
    10Welding Thickness Stainless Steel (304)0.5-3.8mm
    11Power Supply220V/50-60HZ
    12Power Consumption5600W



    Products Picture:


    Application:



    Company Show:





    FAQ:

    Q1 :How long is the warranty time?
    The warranty is one year,if there is problems with the machine, we can provide online technical guidance or you send it back,and we repair it.

    Q2 :What payment method can I use?
    We can accept T/T,L/C,D/P D/A,PayPal,Western Union,you can choose one to pay for it.


    Q3 :Can I pay cash on delivery?
    No,you need to pay it first ,then I will arrange the shipment for you.

    Q4 :How long can I receive the goods?
    When we ship it by express,the shipping time is about 12 working days.When ship it by sea,the shipping time is about 25 working days

    Q5:Why should you I from you not from other suppliers?
    We are a professional handheld inkjet printer and portable marking solution provider, supplied CYCJET series handheld inkjet printer, Portable Industrial inkjet printer, Desktop inkjet printer, laser marking machine to different country in the world!
